Description

PPGL Prepainted Galvalume Steel Coils & Color Coated Aluzinc Sheets

Direct Factory Manufacturer & Exporter. Engineered for superior heat reflectivity, extreme weather resistance, long-lasting roofing sheets, wall cladding, and home appliance manufacturing. Fully compliant with ASTM A792, JIS G3322, EN 10169, and GB/T 12754 standards.

ISO 9001 & SGS Certified

Strict Anti-Corrosion & Coating Thickness Testing

50,000+ Tons Stock

Massive Inventory Ready for Fast Worldwide Shipping

Full Customization

RAL Colors, Matt, Wood/Brick Grain & Profile Corrugation

Comprehensive Technical Specifications & Parameters

Category / Parameter	Technical Standards & Product Details
Product Name & Synonyms	PPGL Coil, Prepainted Galvalume Steel Coil, Color Coated Aluzinc Coil, PPGL Roofing Sheet
Base Substrate & Alloy	Galvalume / Aluzinc Steel (55% Aluminum, 43.4% Zinc, 1.6% Silicon)
Manufacturing Standards	ASTM A792, JIS G3322, EN 10169, GB/T 12754
Thickness Range	0.12mm – 1.5mm (Tolerance: ±0.02mm)
Width Range	600mm – 1250mm (Standard: 914mm, 1000mm, 1200mm, 1219mm, 1250mm)
Aluzinc Coating Weight	AZ30 – AZ150 $\text{g/m}^2$ (Double-sided)
Paint Coating Type	PE (Polyester), SMP (Silicone Modified Polyester), HDP (High Durability Polyester), PVDF
Paint Thickness & Color	Top: 15–25 microns, Back: 5–15 microns \| All RAL Colors, Pattern Print (Wood, Camouflage)
Surface Structures	Glossy, Matt/Wrinkled, Embossed, Printed, Protective PE Film Coating
Coil Weight & ID	3 – 8 Metric Tons per coil \| Inner Diameter: 508mm / 610mm
Quality Testing	T-Bending Test, Impact Test, MEK Wipe Test, Salt Spray Test, Pencil Hardness Test (≥ 2H)

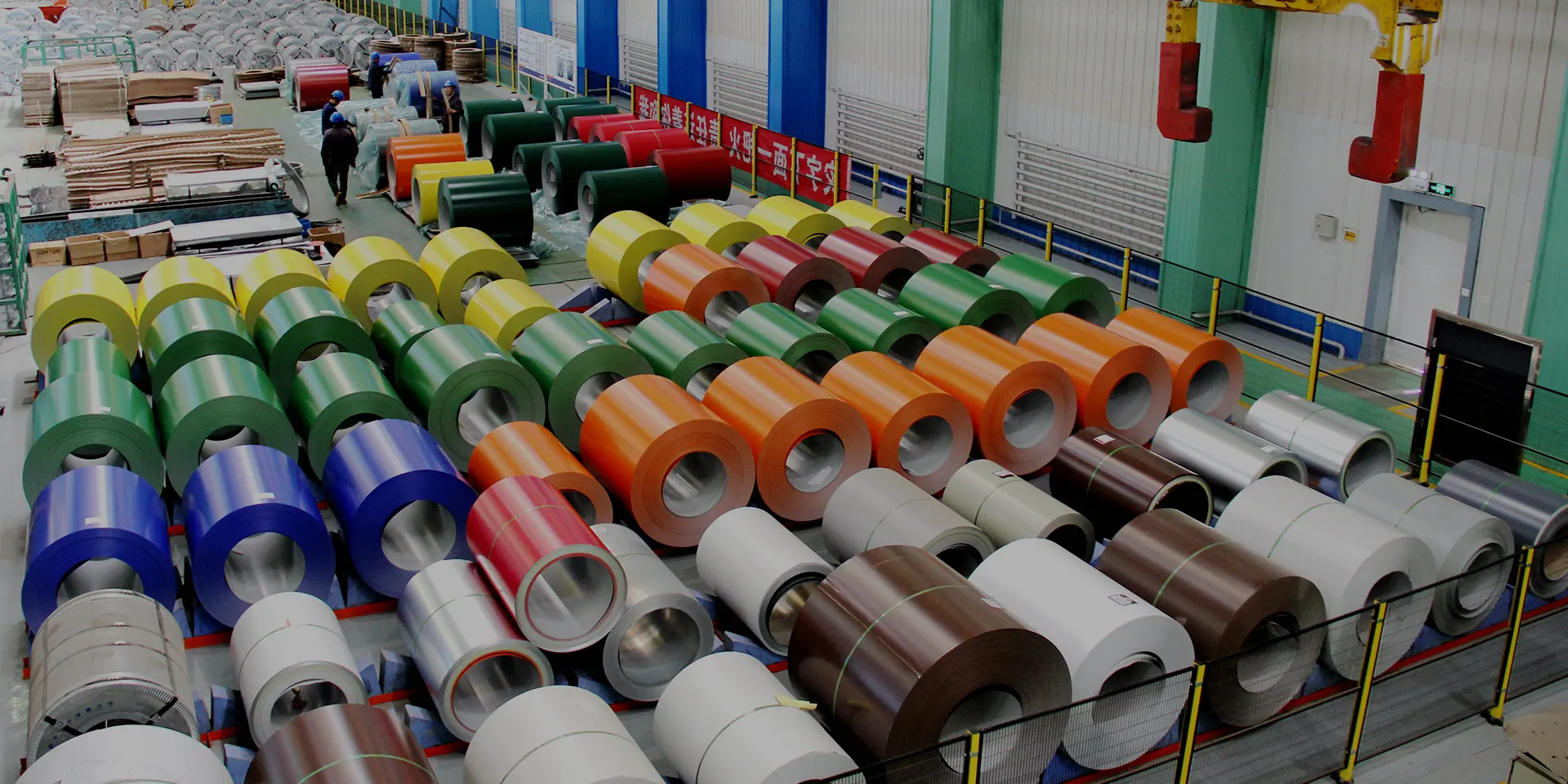

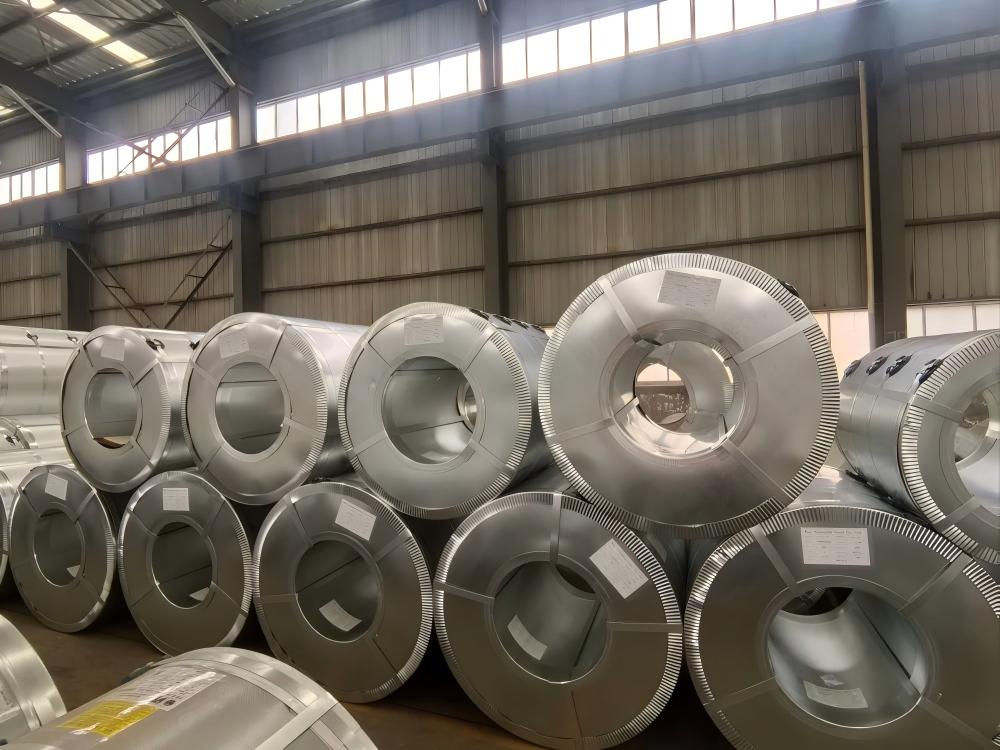

Large-Scale Storage & Ready-to-Ship Inventory

Our modern indoor warehouse holds over 50,000 tons of PPGL coils, prepainted galvalume steel sheets, and corrugated roof tile raw materials. We maintain stock in standard RAL colors (such as RAL 9002, RAL 5012, RAL 3005) to ensure rapid order fulfillment for international distributors and construction contractors.

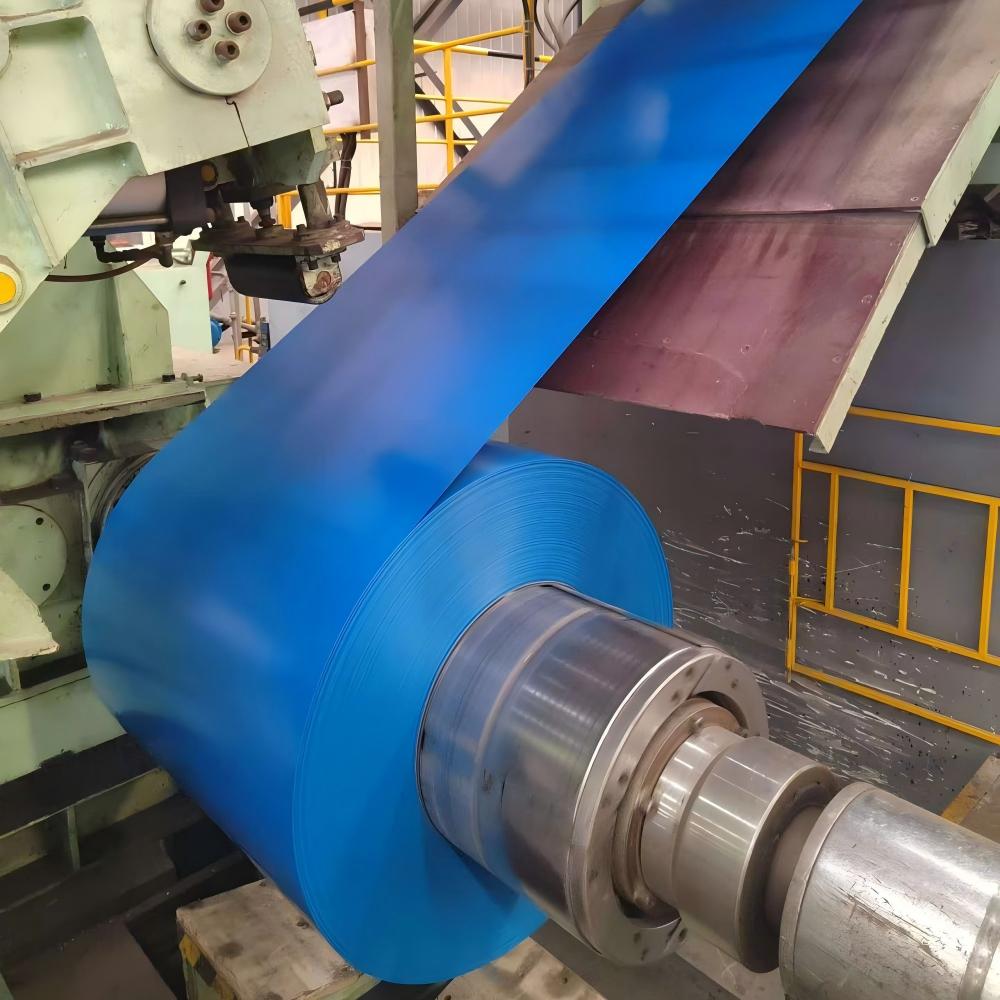

Automated Color Coating & Galvalume Production Lines

Equipped with 2 double-coat double-bake color coating lines and continuous galvalume dipping lines, our factory achieves uniform paint adhesion, vibrant color consistency, and extreme weatherability against UV radiation and coastal salt fog corrosion.

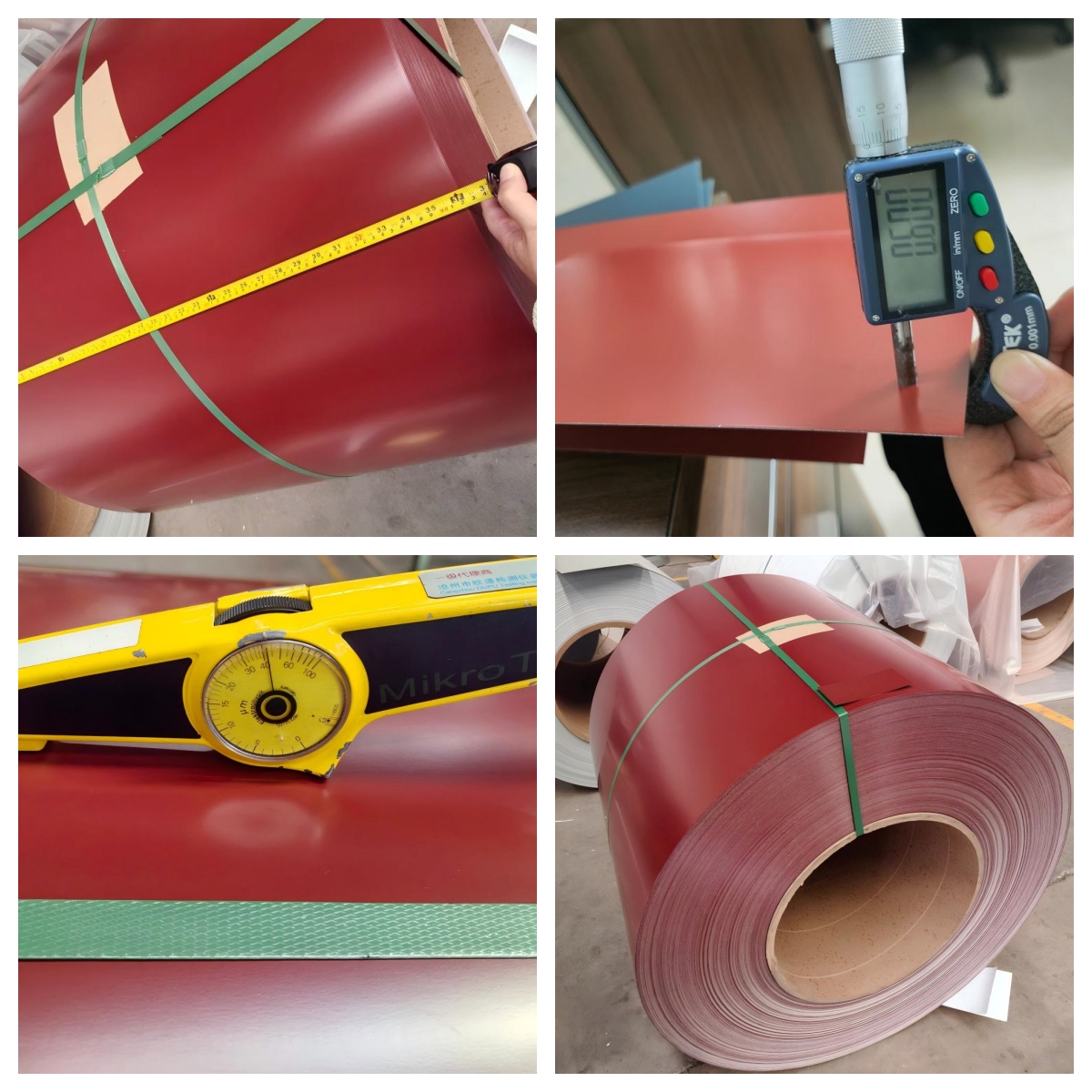

Strict Quality Assurance & In-House Testing Laboratory

Quality is strictly guaranteed before shipment. Every coil undergoes comprehensive physical and chemical testing to ensure zero peeling, zero cracking, and long-term corrosion protection.

Paint Film Thickness: Electromagnetic gauges verify micron-level paint distribution.
T-Bend Test: 0T–2T bend tests ensure paint coating flexibility without cracking during profiling.
Adhesion Test: Cross-hatch tape adhesion and impact testing.
Corrosion Resistance: Accelerated salt spray testing simulating harsh outdoor environments.

Seaworthy Export Protective Packaging

PPGL Coils are packed with waterproof paper, inner metal sleeves, plastic film wraps, galvanic steel outer ring protectors, and heavy-duty steel bands strapped onto strong wooden pallets to guarantee moisture-free ocean transit.

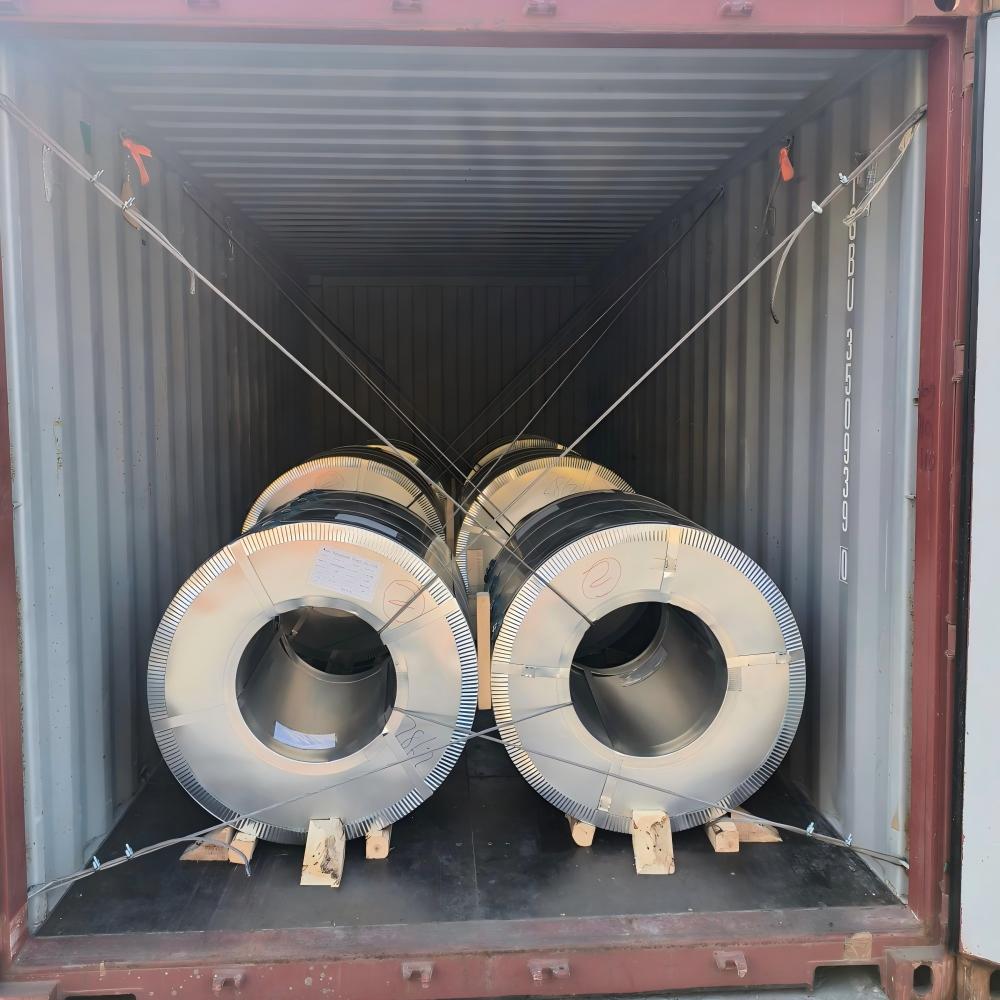

Container Loading & Ocean Logistics Supervision

Coils are anchored using vertical or horizontal loading arrangements (Eye-to-Sky / Eye-to-Side) with wooden chocks and heavy-duty wire ropes inside 20ft containers, ensuring total stability on rough seas.

Key Application Industries

Corrugated Metal Roofing Sheets Industrial Building Wall Cladding Steel Structure Warehouses Home Appliances (Refrigerators, Washers) Roller Shutter Doors & Fencing Cold Storage Sandwich Panels

Ready to Place an Order or Request a Fast Quote?

Get in touch with our expert sales engineers today. We offer competitive factory-direct pricing, fast lead times, and free color samples for your quality verification.
